MAHLE Motorsport Conrod Bearings - BMW E60 | E61 M5 | E63 | E64 M6 (S85)

Regular price £435.00 GBP
Sale price £435.00 GBP Regular price
Sold out
SKU: VC1045 STD

Fitting Available - Please email sales@evolveautomotive.com for a quote.

  • Applicable for BMW engines S85B50
  • Sold as complete set (10 cylinders)

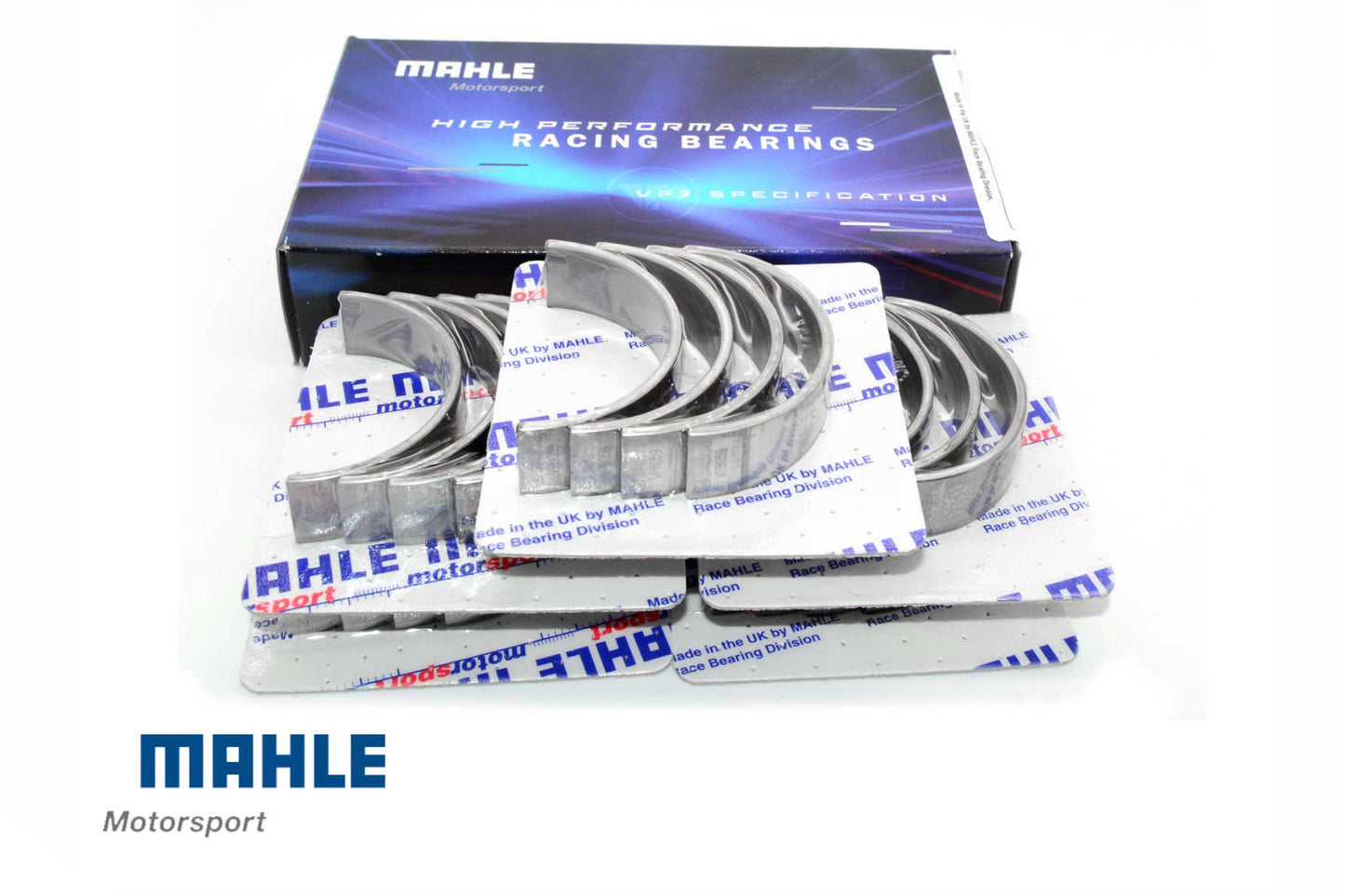

MAHLE Bearings

These bearings are manufactured in the UK to the highest quality by the very people who make bearings for F1 engines, as well as all other leading race series including Le Mans, NASCAR, MotoGP, WRC, DTM!

Nominal optimal clearance of 55micron (43 to 57 micron range) calculated using proprietary MAHLE Motorsport software that accurately predicts housing swell, bearings loads, oil film thickness and power loss. The same software is used to design Formula 1, Le Mans, NASCAR, MotoGP, WRC & DTM bearings!

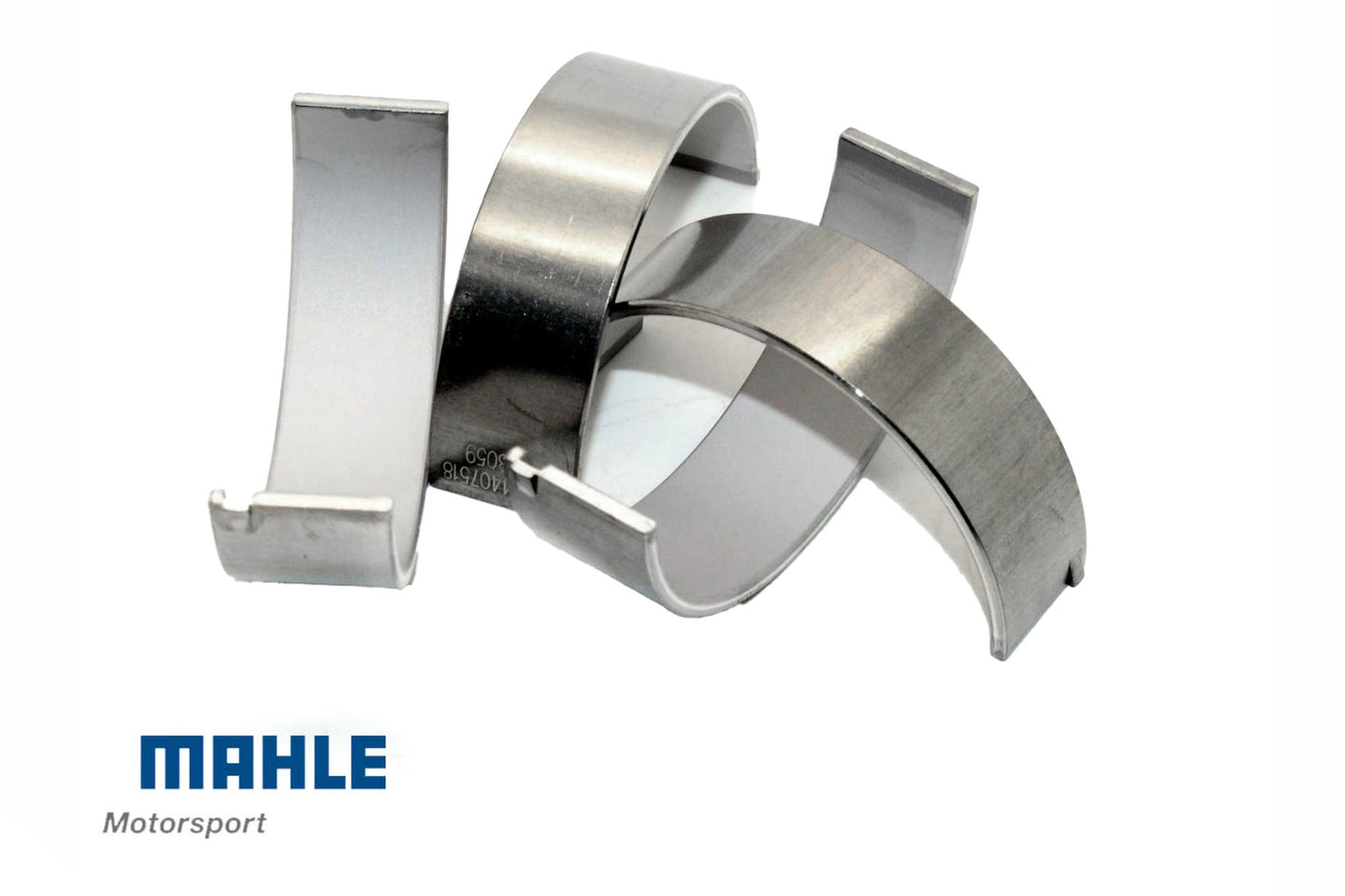

Bearing Construction

Manufactured with high strength steel back with a cast bronze substrate and finished with a lead indium overlay, originally known as VP2. This unique structure gives a higher fatigue strength than other Race bearings along with better conformability. This exact material is still used in race engines in all major race series globally! This material should not be confused with other “tri metal” bearings. Other parts are sintered which gives a lower fatigue strength and use lead / tin overlay.

ARP S85 Rod Bolts

Designed by BE Bearings, manufactured by ARP. These custom made rod bolts are designed to be used on BMW factory connecting rods.

BE Bearings worked with ARP to come up with custom rod bolt torque specifications to ensure minimal rod big end bore distortion.

Our bolts have been measured and verified to guarantee minimal bore distortion, and stay within the ARP torque specification.


Technical Details:

Composition ARP2000
Part Number ARP-S85
Yield strength 200,000 PSI
Tensile strength 220,000 PSI
Torque specification 50 Ft/Lbs, or 0.0065-0.0070 inch stretch
