Keep an eye on those pressures with our simple analog pressure sensor
5 volt sensor **DO NOT POWER WITH 12 VOLT SOURCE**
To use with the P3 Gauge, simply select the "PS" (pressure sensor) option for one of the two universal analog inputs.

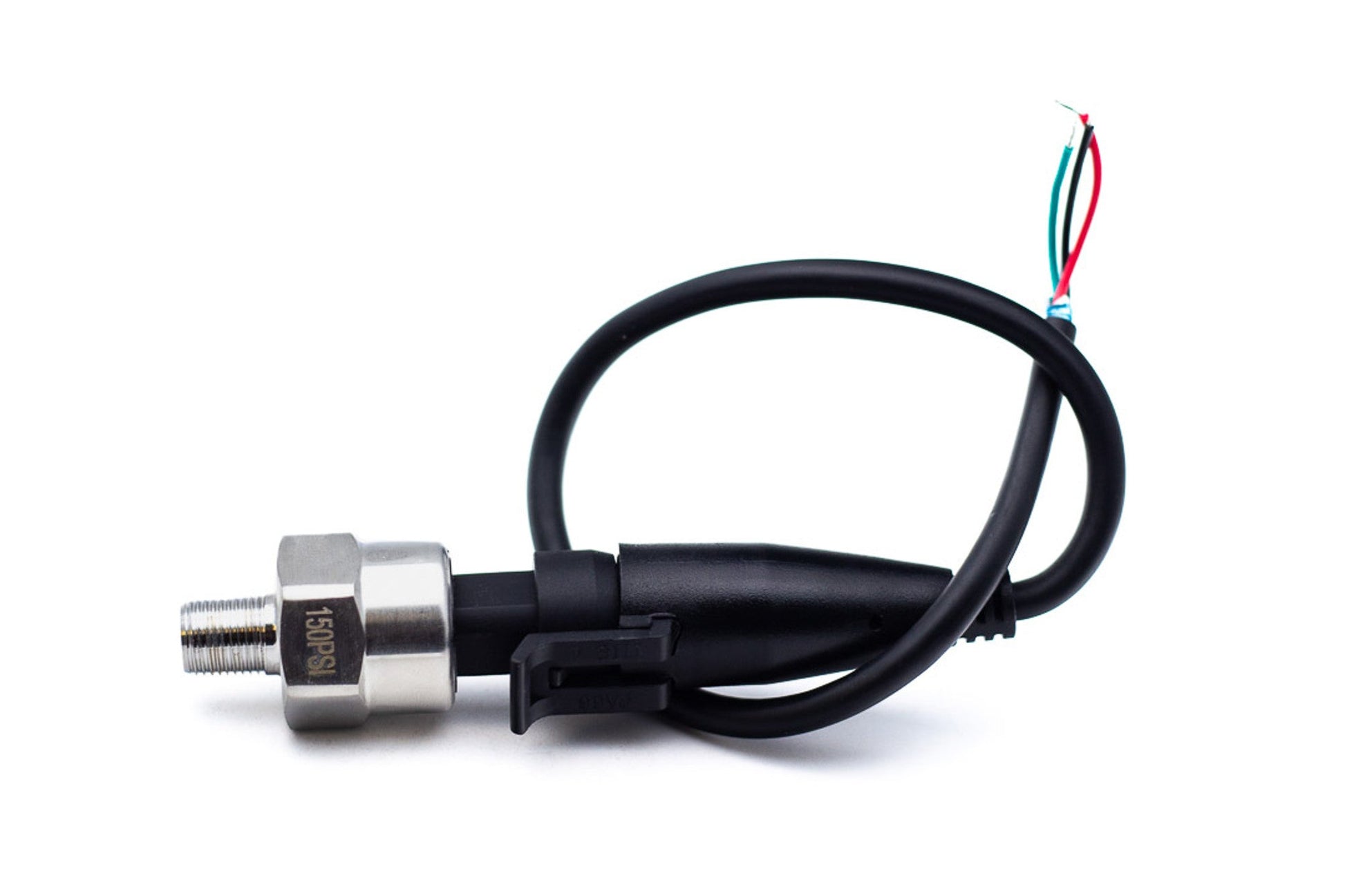

0-150 PSI pressure sensor
Adds pressure readout to P3 gauge using analog input
Can measure oil, water, or air pressure
10" wiring harness
1/8" NPT fitting
Can "T" into oil pressure galley along with factory oil pressure switch
Can be used to monitor
Engine oil pressure
Air ride pressure
Coolant system pressure
Simple 3 wire harness
Red - 5 volt power supply (can be sourced from purple wire on P3 harness)
Black - Chassis ground
Green - Signal output (routed to brown or blue wire on P3 harness)
