DO88 Intercooler Outlet Pipe - BMW F20 | F21 M135i | F22 | F23 M235i | F30 335i | F87 M2 (N55)

DO88 Hi Flow Performance Pressure Pipe

To fit:

• BMW 1-Serie F20 F21 – 2010-2018 – Engine: M135i, M135iX
• BMW 2-Serie F22 F23 – 2012-2018 – M235i, M235iX, M235i Racing
• BMW 2-Serie F87 – 2015-2018 – Engine: M2
• BMW 3-Serie F30 F31 F34 – 2011-2018 – Engine: 335i, 335iX
• BMW 4-Serie F32 F33 F36 – 2012-2018 – Engine: 435i, 435iX

Replaces intercooler outlet to engine intake pipe.

This kit is intended for those with significant horsepower ambitions and who wish to upgrade to the absolute best!

The DO88 pressure pipe has considerably better airflow than the stock pipe. This has been verified in several tests, both in car and in our own SuperFlow SF-1020 flow bench.

Significant advantages with do88 pressure pipes (OEM pipes):

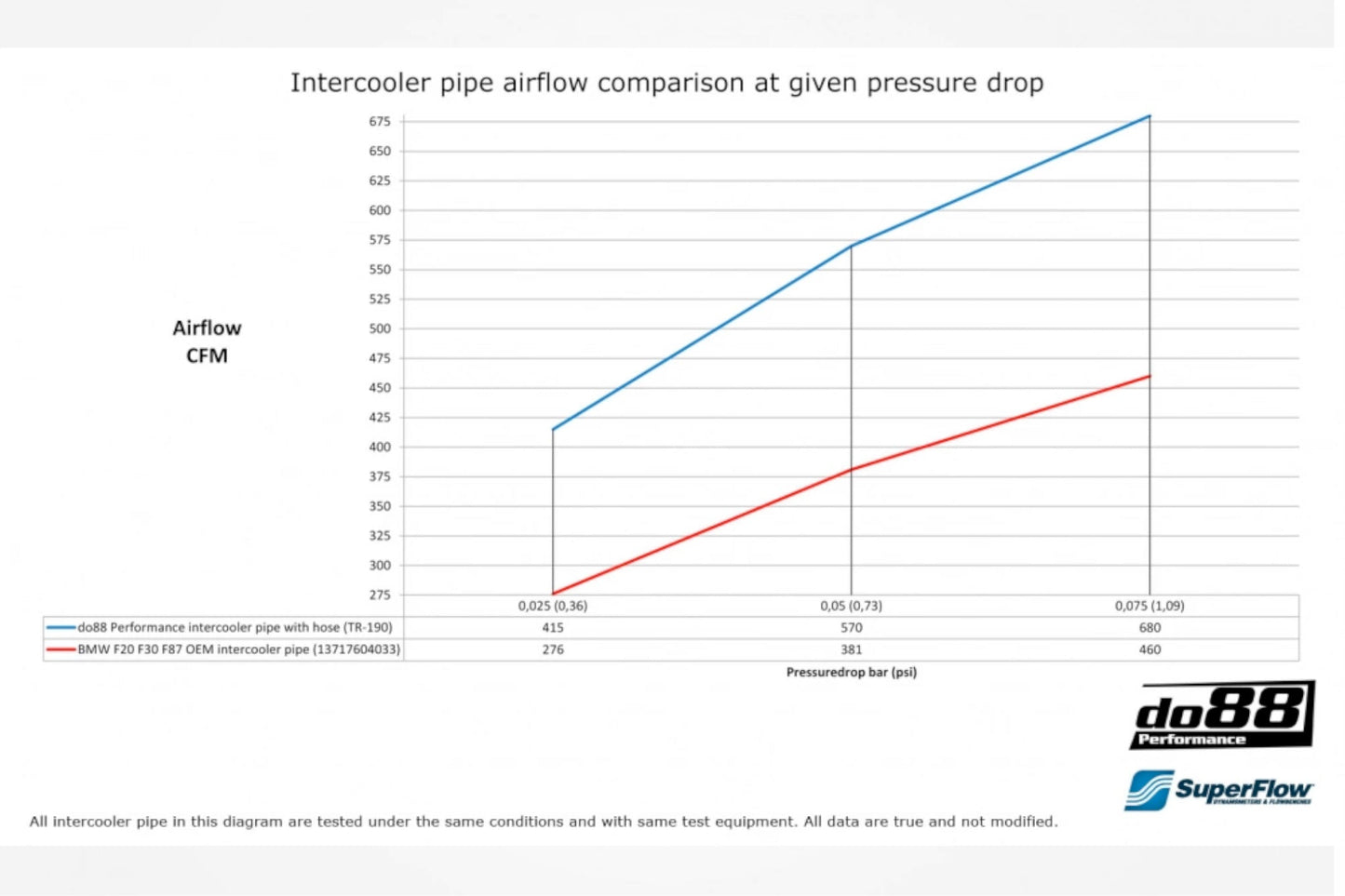

• Air flow at 0,075bar/1,09psi pressure drop: 680CFM (460CFM), do88 48% higher!
• Designed to handle high pressure and temperatures!
• The pipe has two methanol injection connections (1/8 -27 NPT). The pipe is delivered with blanking plugs in these connections.

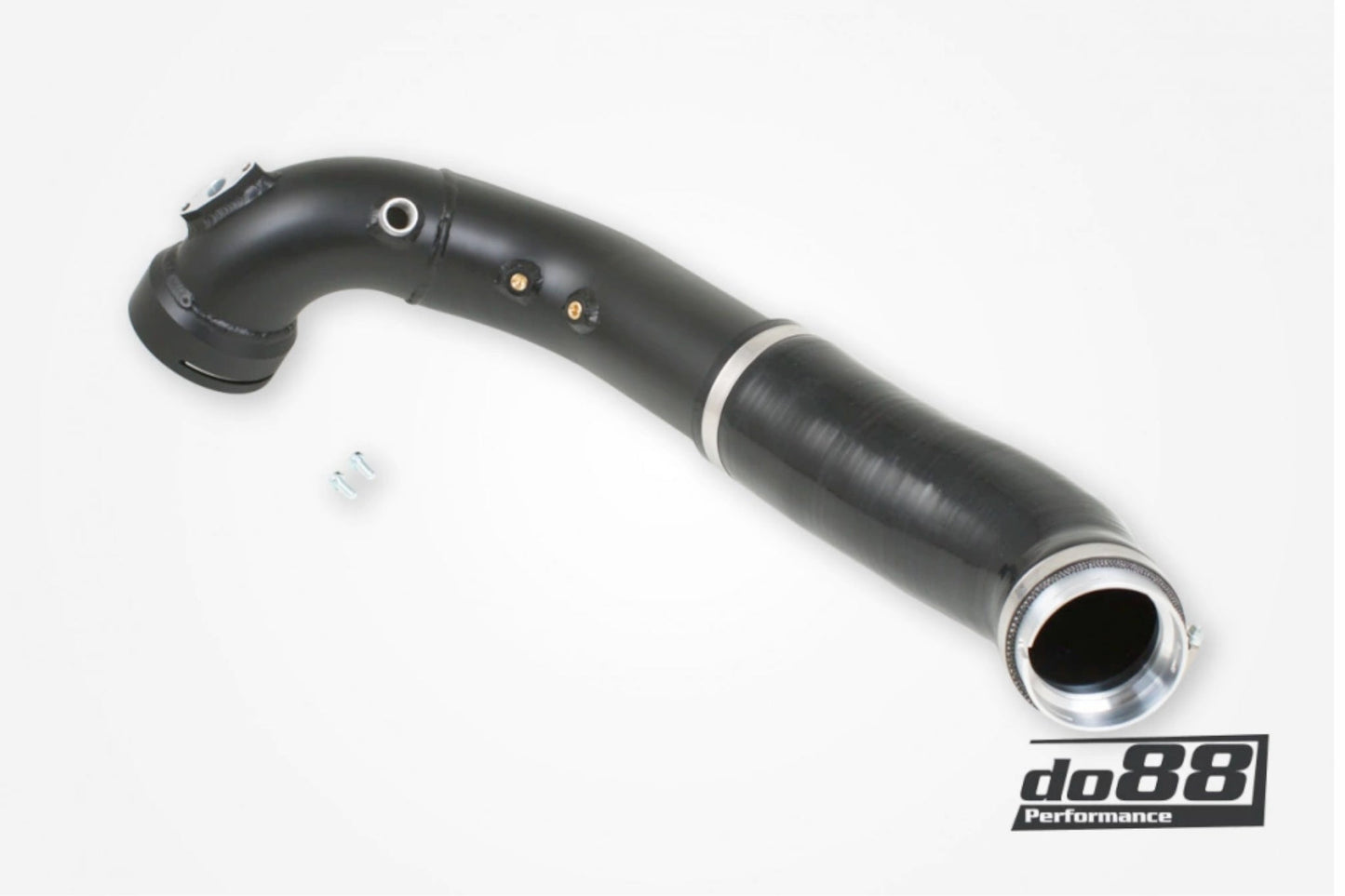

The pressure pipe is manufactured in 3” mandrel bent seamless aluminium pipe. CNC machined sensor flange for best fitment.

Custom made high quality silicone hose with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure!

Always remember that the OEM intercooler pipes and hoses were only designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may mean that the OEM pipes and hoses don’t have the performance you need. So only after engine software tune do88 pressure pipes will give a performance increase over the OEM pipes! This do88 pressure pipe comes with all hardware necessary for installation.

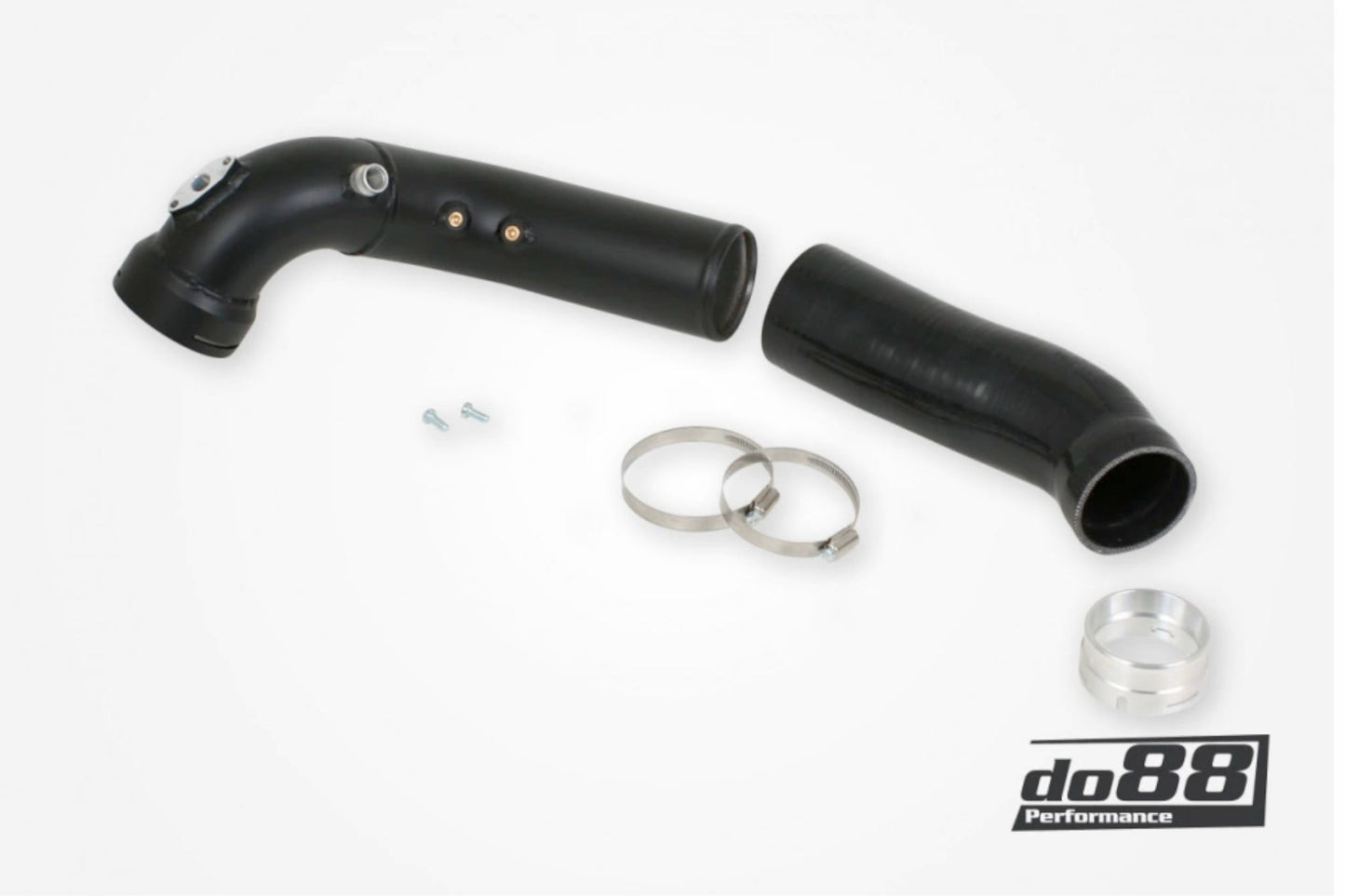

Included parts in this kit:

1. Aluminium pressure pipe
2. Installation hardware for pressure pipe
3. One silicone hoses
4. Two standard hose clamps
5. Hose adapter for the intercooler connection

TR-190 Fitting Instructions

Equivalent OEM BMW reference: 13717604033 (for cross reference only)
do88 part number TR-190S, TR190
