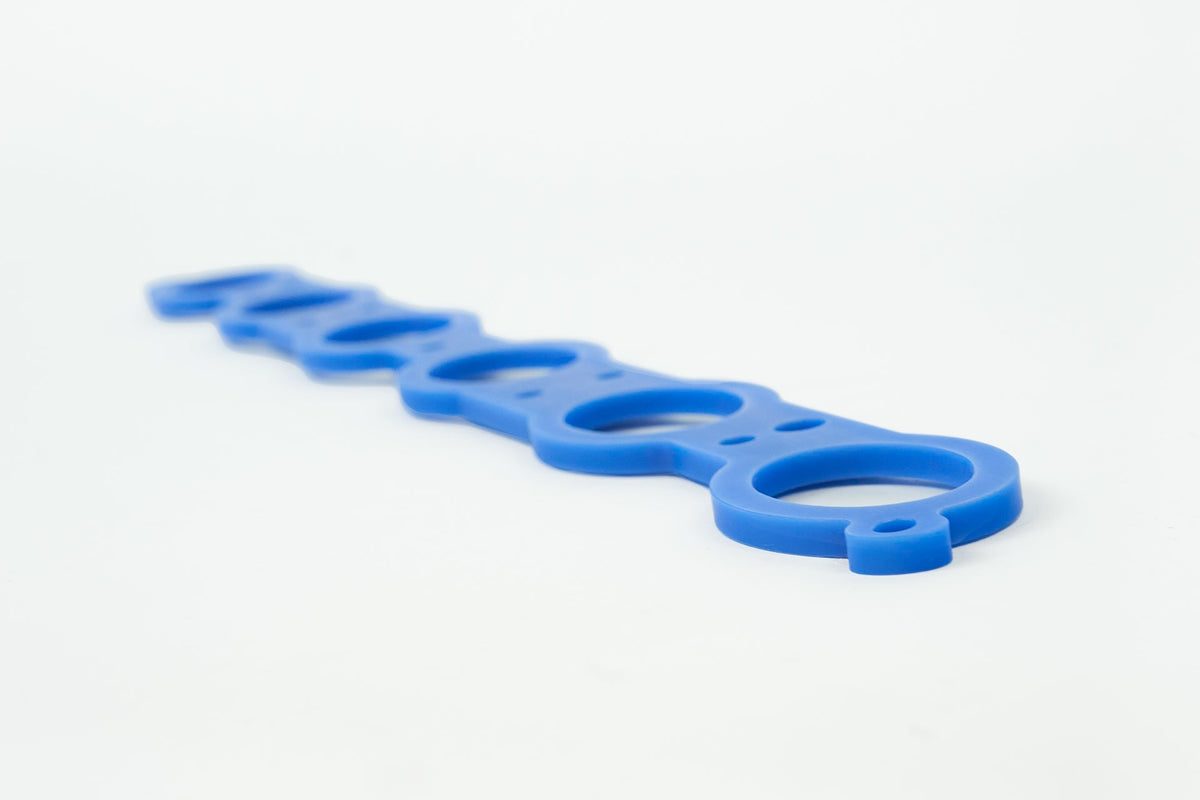

CSF B58 Thermal Rejection Competition Charge-Air Manifold Spacer - BMW G20 | G21 M340i | G22 | G23 | G26 M440i | G42 M240i | G29 Z4 M40i | G30 540i | G11 740i | G14 | G15 | G16 840i | G01 X3 | G02 X4 | G05 X5 | G06 X6 | G07 X7

The Thermal Rejection Competition Spacer is the next step for Gen 2 B58 cars running the CSF billet Charge-Air Cooler Manifold. Machined from KIYLEX – a patented high-performance polymer as strong as aluminium and able to withstand 1100°F (approx. 593°C) – it sits between the cylinder head and the manifold, blocking conductive heat transfer from the head.

Because the CSF manifold is aluminium, it conducts head heat far more readily than the factory plastic item. The spacer absorbs and dissipates that heat instead, lowering manifold and intake air temperatures and improving charge-air cooler efficiency. It is particularly effective at drag and roll-racing events, where sitting in staging lanes with little airflow causes heavy heat soak between runs – but any car with the CSF manifold will benefit.

Please note: this spacer requires the CSF Gen 2 B58 Charge-Air Cooler Manifold (CSF-8200) and will not work with the OEM manifold.

Features

• Made from KIYLEX high-performance final-stage polymer
• Spacer height: 6.5mm
• Acts as a thermal barrier between the cylinder head and intake manifold
• Proven to lower intake manifold temperatures by up to 15%
• Lowers intake air temperatures (IATs) and combats heat soak
• Withstands temperatures up to 1100°F and is as strong as aluminium
• Self-sealing – no gaskets, silicone or sealants required
• Installation hardware and instructions included
• Limited lifetime warranty

Fitment

• BMW G20 / G21 M340i (incl. xDrive)
• BMW G22 / G23 / G26 M440i (incl. xDrive and Gran Coupe)
• BMW G42 M240i (incl. xDrive)
• BMW G29 Z4 M40i
• BMW G30 540i (incl. xDrive, 2020–2023)
• BMW G11 740i / 745e (incl. xDrive, 2018–2022)
• BMW G14 / G15 / G16 840i (incl. xDrive and Gran Coupe)
• BMW G01 X3 M40i (2020–2024)
• BMW G02 X4 M40i (2020–2024)
• BMW G05 X5 sDrive40i / xDrive40i / xDrive45e / xDrive50e
• BMW G06 X6 sDrive40i / xDrive40i
• BMW G07 X7 xDrive40i
