Dorch Engineering N55 HPFP Lift Kit (PWG) - BMW F20 M135i | F22 M235i | F30 335i | F32 435i | F87 M2 (N55 PWG)

The Dorch Engineering N55 Lift Kit adds up to 49% more fuel flow on top of a Dorch N55 high pressure fuel pump, unlocking more power than ever before possible from the factory direct-injection system. This version is for N55 engines with the pneumatic wastegate (PWG).

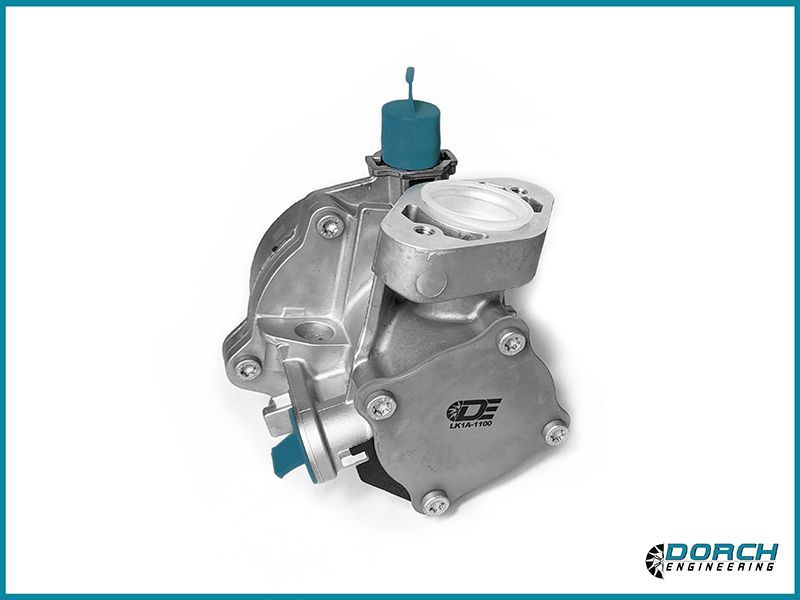

Based on a genuine BMW vacuum pump core fitted with a Dorch Engineering cam using proprietary tooling and validation equipment, it delivers a big increase in fuel flow in a simple, clean package while retaining the safety and sophistication of the standard DME.

Please note:

• Requires a Dorch N55 HPFP (DS15 / DS1 or DS25 / DS2) – not compatible with the OE high pressure fuel pump.
• This kit is for PWG N55 engines – please make sure you select the correct version for your car.
• Software changes are required. Bootmod3 users can select the appropriate "Lift Kit" option when flashing (MHD coming soon); otherwise a custom calibration will be needed.
• When combined with a DS25 (or DS2) there is a minimum power requirement – 430whp (+38%) / 500whp (+49%) on E10. There is no minimum with the DS15 (or DS1).
• Beyond the capacity of a Stage 2 pump the N55 is limited by its injectors – upgrading to S63 EU5 injectors is highly recommended to see the full potential.
• Only suitable for 2013-on N55 engines with the OE Bosch HPFP – not compatible with 2011–2012 N55 vehicles.

Features

• Up to +49% fuel flow on top of a Dorch N55 HPFP
• With DS15: up to 750whp on E10 / 610whp on E85 (+49%)
• With DS25: up to 1000whp on E10 / 770whp on E85 (+49%)
• Built on a genuine BMW vacuum pump core with Dorch Engineering cam
• Kit includes: Dorch vacuum pump assembly, Dorch HPFP lift kit mounting flange, vacuum pump sealing cap and vacuum pump gasket
• Dorch Engineering lifetime warranty

Fitment

• BMW F87 M2 (N55)
• BMW F20 / F21 M135i (inc. xDrive)
• BMW F22 / F23 M235i (inc. xDrive)
• BMW F30 / F31 / F34 335i (inc. xDrive)
• BMW F32 / F33 / F36 435i (inc. xDrive)
• BMW F10 / F11 535i (inc. xDrive) *
• BMW F25 X3 35i / F26 X4 35i *
• BMW F15 X5 35i / F16 X6 35i
• BMW E82 / E88 135i (N55) *
• BMW E90 / E91 / E92 / E93 335i (N55) *
• BMW E84 X1 35i *
• BMW E70 X5 35i / E71 X6 35i *

* 2013-on models fitted with the OE Bosch high pressure fuel pump only. Not compatible with 2011–2012 N55 vehicles.
